A completely new circuit design and the use of state-of-the-art power semiconductors and SMD technology enable above-average efficiency and an extremely compact design. Up to 6 Megasonic LowPower Modules (MLM) can be installed in a high-quality EMC-shielded 19" housing. Each module has a maximum output power of 60W.

The main features are:

• Compact generator → minimal space requirement in the system
• Automatic tuning for optimal control of the transducer → maximum megasonic energy input for reproducible cleaning processes
• Minimal reflected power → results in high efficiency
• Output power on each module can be set manually or via interface → variable megasonic energy input
• Modular 19“ design with installation option in 19” cabinets using mounting brackets → low installation effort and high serviceability

Most compact 2000W mega sound generator on the market

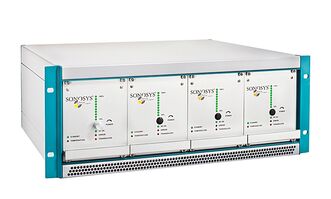

A completely new circuit design and the use of state-of-the-art power semiconductors and SMD technology achieve above-average efficiency and an extremely compact design. Up to four Megasonic HighPower Modules (MHM) can be installed in a high-quality EMC-shielded 19" housing, delivering remarkable 2000W at 400kHz / 600kHz / 1MHz and 1200W at 2MHz.

The main features are:

• Most compact 2000W mega-sound generator on the market → minimal space requirements in the system
• Automatic tuning for optimal control of the transducer elements → maximum megasonic energy input for reproducible cleaning processes
• Minimal reflected power → results in high efficiency
• Output power adjustable from 10% to 100% on the generator or via interface → variable megasonic energy input
• Adaptable to different megasonic transducers (including third-party products) → flexible application options thanks to 50Ω output
• Modular 19“ design with mounting option in 19” cabinets using mounting brackets → low installation effort and high serviceability

The Sonosys® digital generator replaces conventional analog generators. It enables precise remote control of the output power via a server using the Modbus protocol. Unlike older models, the digital generator allows adjustment of output power as well as real-time monitoring of internal data such as temperature, actual output power, and error conditions. It also supports control signals for remote control of frequency and duty cycle and can be switched on and off via the network or locally.

The main features are:

• Compact generator → minimal space requirements in the system
• Remote control of power via Modbus protocol
• Output power adjustable on each module
• Display of power, temperature and other operating parameters for each module directly on an integrated LCD panel
• Additional app software for setup, parameter control, and monitoring
• High efficiency
• Modular 19“ design with mounting option in 19” cabinets using mounting brackets → low installation effort and high serviceability
